Diode Dynamics

SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty (w/ LED Fog Lights)

SS6 LED Fog Light Kit for 2020-2022 Ford Super Duty (w/ LED Fog Lights)

Regular price $339.95
Regular price Sale price $339.95
Color: White SAE Fog

NOTE: This kit is compatible with F250/F350/F450/F550 models with optional or standard LED fog lamps installed. If you have halogen fog lights from the factory, please see our SS3 Fog, Elite Series Fog, or Fog Pocket Kit instead.

Features

  • Direct fitment on 2020-2022 Ford Super Duty.
  • Replaces the factory fog lights with two 6" light bars.
  • Road legal output as fog lights.
  • Plug-and-play wiring harness included to power light bars.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for simple installation - no cutting or drilling required.

Overview

Perfect Fitment. The SAE LED Fog Light Kit for the 2020-2022 Ford Super Duty from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory LED fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as fog lights (Please check your local laws and regulations for aiming, installation, and applicability). Wire adapters are included to connect the lights to your factory fog light connectors - no additional wiring needed!

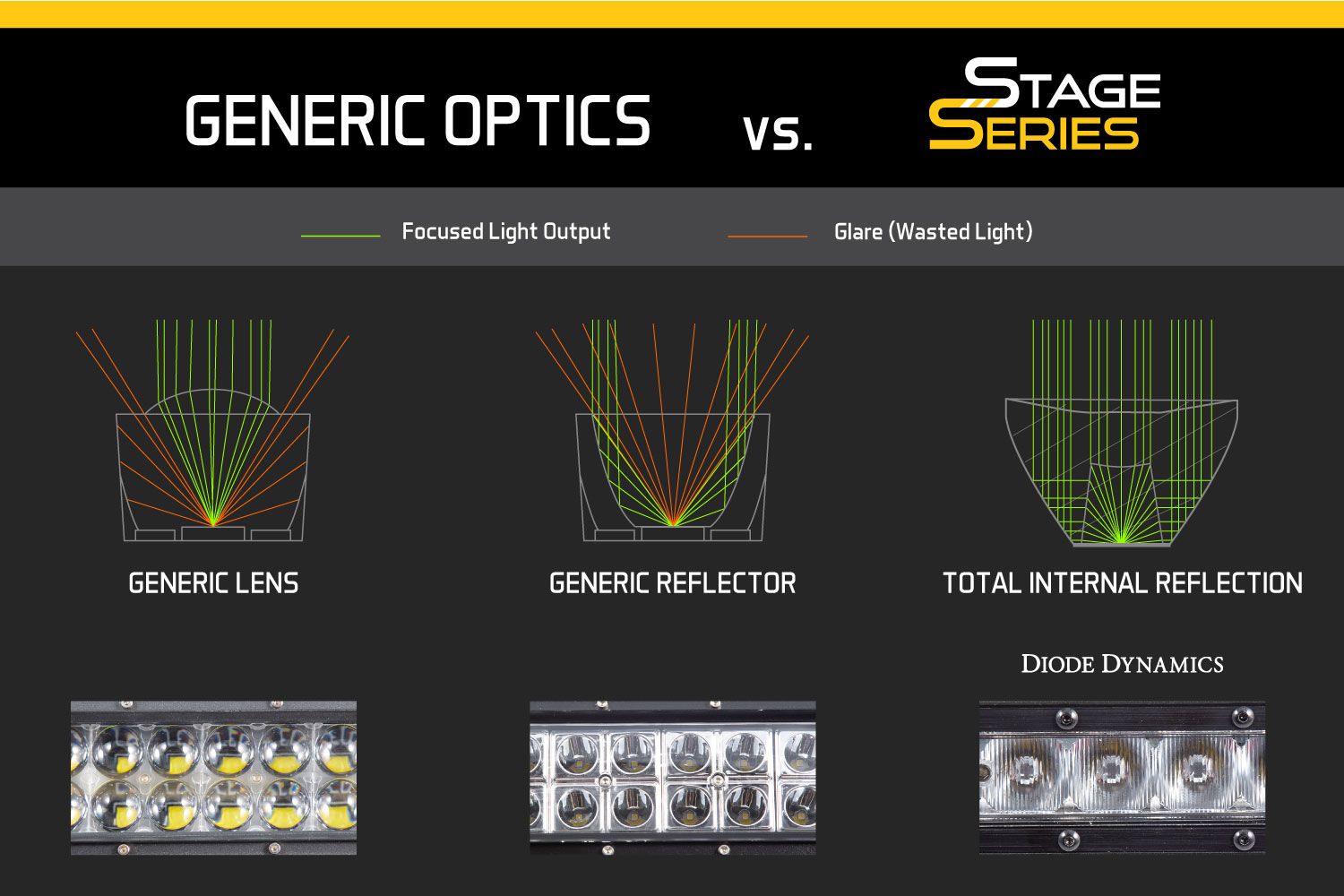

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

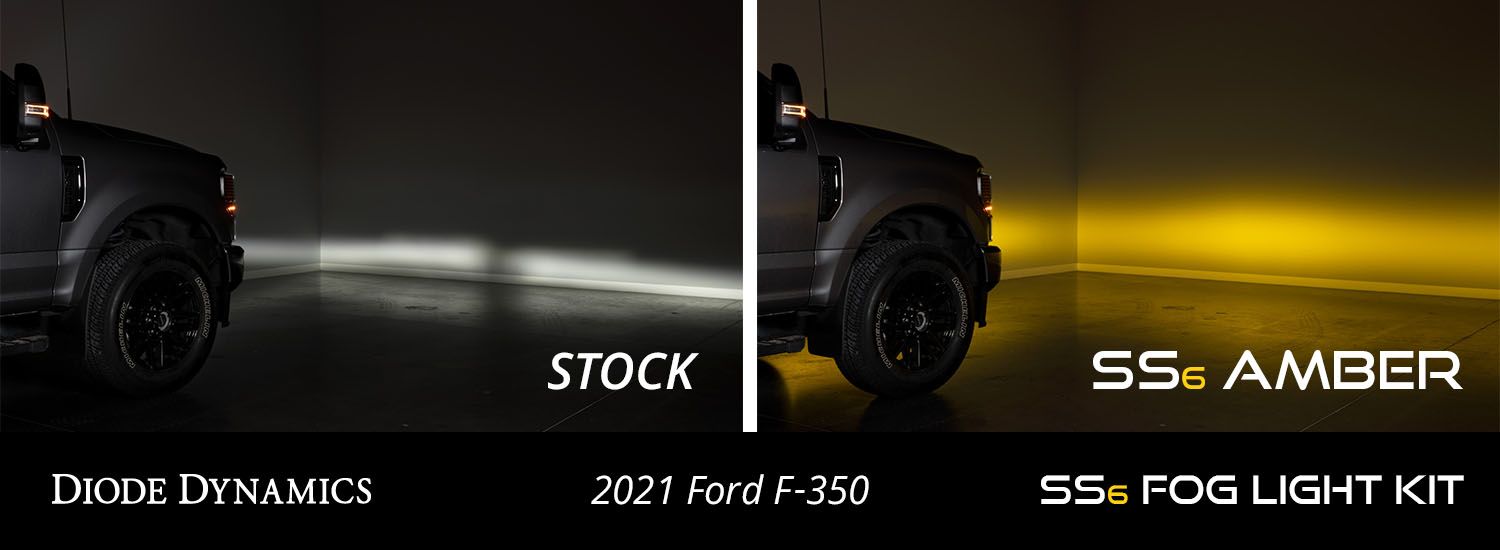

The SAE Fog/Wide pattern pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle.

light bar beam patterns

White or Amber. The Stage Series light bars included with this kit are available in a cool white or amber color. The white is a 6000K color temperature, which is a true white output, without any blue. The amber is a brilliant deep yellow color, perfect for hazards or high contrast in poor weather.

What's Included

In the Box:
  • One (1) Ford Super Duty 2020-2022 SS6 Fog Mounting Kit
  • Two (2) SS6 Stage Series 6-inch Light Bars
  • Two (2) 9006 DT Adapters
  • Installation Guide

Quantity: Two (2)

Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

100% Satisfaction Guarantee

Fitment

NOTE: This kit is compatible with F250/F350/F450/F550 models with optional or standard LED fog lamps installed. If you have halogen fog lights from the factory, please see our SS3 Fog, Elite Series Fog, or Fog Pocket Kit instead.


Application: Fog Light
Make: Ford
Model: Super Duty F250/F350/F450/F550
Years: 2020, 2021, 2022
