Diode Dynamics

SS3 SAE/DOT White Sport LED Pods (pair)

SS3 SAE/DOT White Sport LED Pods (pair)

Regular price $239.95
Regular price Sale price $239.95
Primary Optic:
Backlight Color:

Features

  • Modern TIR optics provide highest intensity on the market
  • Backlight accent feature, available in white, amber, red, and blue
  • Available in SAE Driving, SAE Fog, Flood, Combo, or Spot beam patterns
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Engineered and Assembled in USA

Overview

Introducing the SS3 3” LED Pod! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Click here to learn more: Beam Pattern Overview Video.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SS5 Backlight Functionality

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance. With an incredible output of 151,000 candela, the SS3 Sport shines a half-mile away (¼ lux), from a compact 3-inch package. NOTE: The Pro Spot uses a slightly larger emitter which spreads the light output more than the Sport Spot, resulting in a lower candela and lux rating even at a higher power level.

SS3 Beam Patterns

Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way! Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SS3 Stage Series 3" Yellow LED Pod can be found here. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information or click here.

Sport Beam

Backlight Functionality. The Stage Series 3" LED Pod is now available with a distinctive backlight, in your choice of white, amber, red, and blue. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can be used to power up to two SS3 pods. If you are looking to power more than two SS3 pods, we recommend using our Heavy Duty Dual Output Harness along with a Deutsch DT Splitter.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

What's Included

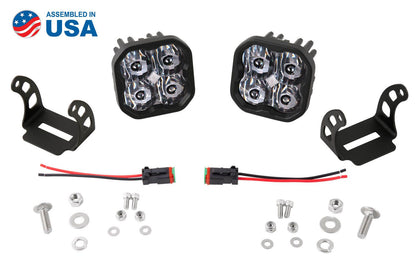

In the Box:
  • Two (2) SS3 3” LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Mounting brackets and hardware
Quantity: Two (2)

Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

100% Satisfaction Guarantee


Specifications

NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Driving Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White
Driving Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White
Driving Max 98,000 cd 980 lux 3,500 lm 7,920 lm 6000K White
Flood Sport 1,750 cd 18 lux 1,520 lm 2,262 lm 6000K White
Flood Pro 3,100 cd 31 lux 3,000 lm 5,796 lm 6000K White
Flood Max 2,600 cd 26 lux 3,500 lm 7,920 lm 6000K White
Fog Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
Fog Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
Fog Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White
Spot Sport 151,000 cd 1,510 lux 1,520 lm 2,262 lm 6000K White
Spot Pro 131,500 cd 1,315 lux 3,000 lm 5,796 lm 6000K White
Spot Max 251,000 cd 2,510 lux 3,500 lm 7,920 lm 6000K White
Combo Sport 31,500 cd 315 lux 1,520 lm 2,262 lm 6000K White
Combo Pro 35,100 cd 351 lux 3,000 lm 5,796 lm 6000K White
Combo Max 46,000 cd 460 lux 3,500 lm 7,920 lm 6000K White




Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
Datasheet(s) (click to download): SS3 Pro White Standard

Color Temp (CCT): 6000K

Power (watts): Main Beam: 36, Backlight: 0.4

Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Cree XP-L HI

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Intrusion Ratings: IP69K Waterproof, High Pressure

Product Dimensions (in): 3.3 x 3.3 x 2.4

Unit Weight (lb): 0.75

Product Weight (lb): 2.06

Shipped Weight (lb): 4
