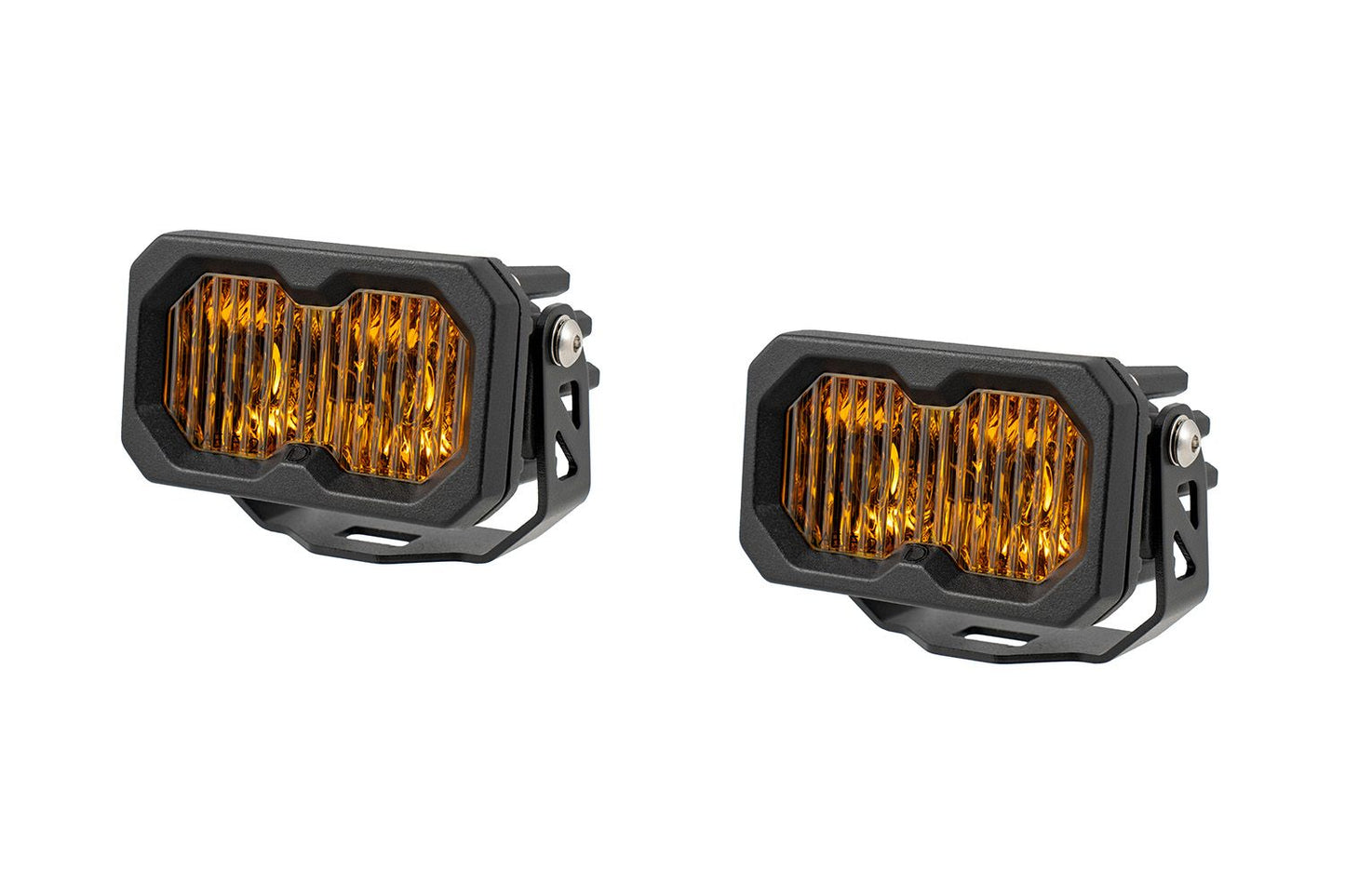

C2 2.0 SAE Yellow Pro Standard LED Pod (pair)

Features

• Ultra-compact design for tight mounting spots
• Patented TIR optics for maximum output
• Up to 95% more power than C2 1.0
• Available in Sport, Pro, and new 3900-lumen Max power levels
• Customizable mounting to dial in your setup
• Link multiple pods with CrossLink technology
• Limited Lifetime Warranty
• Made in USA with Global Materials

Overview

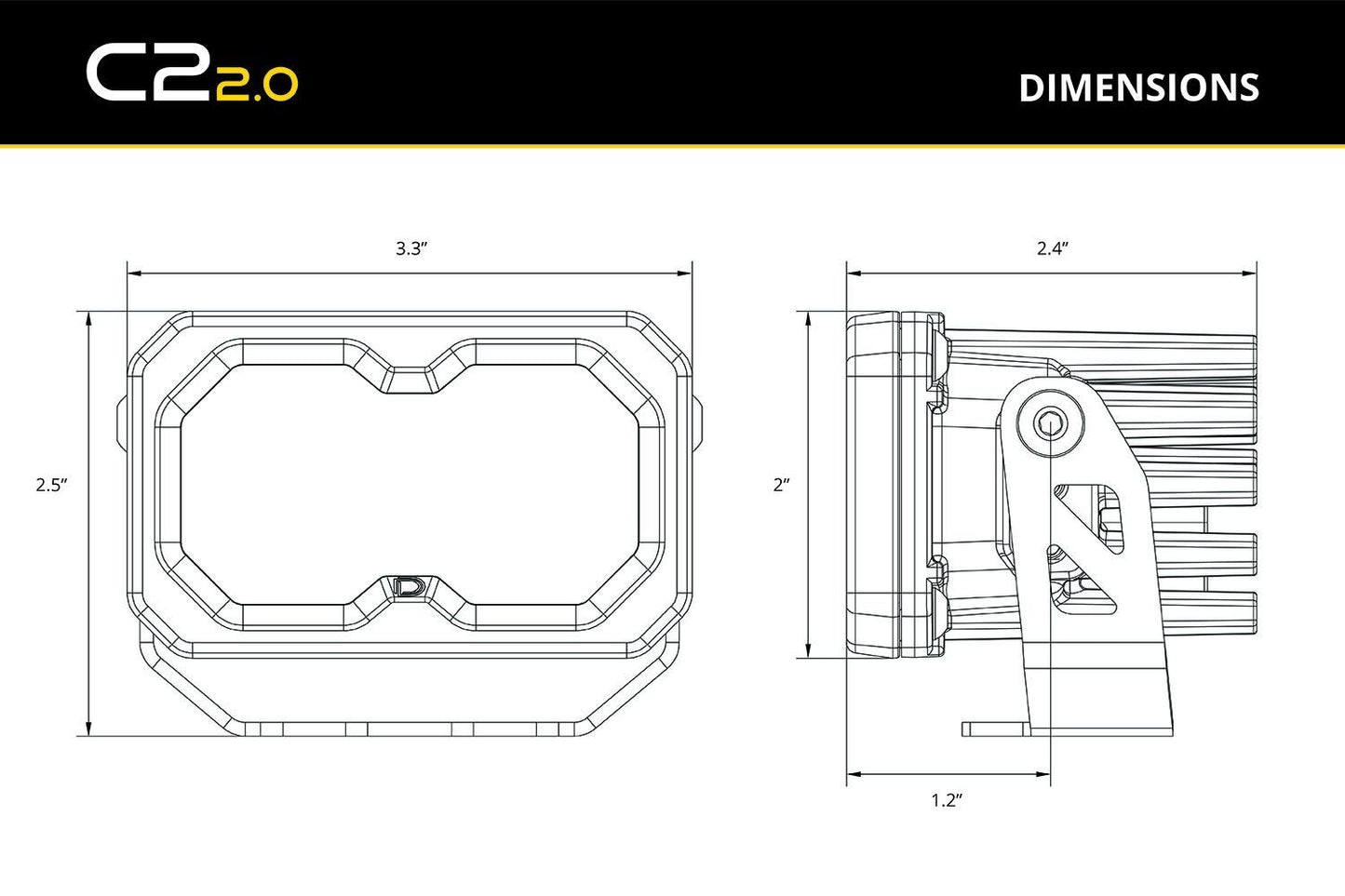

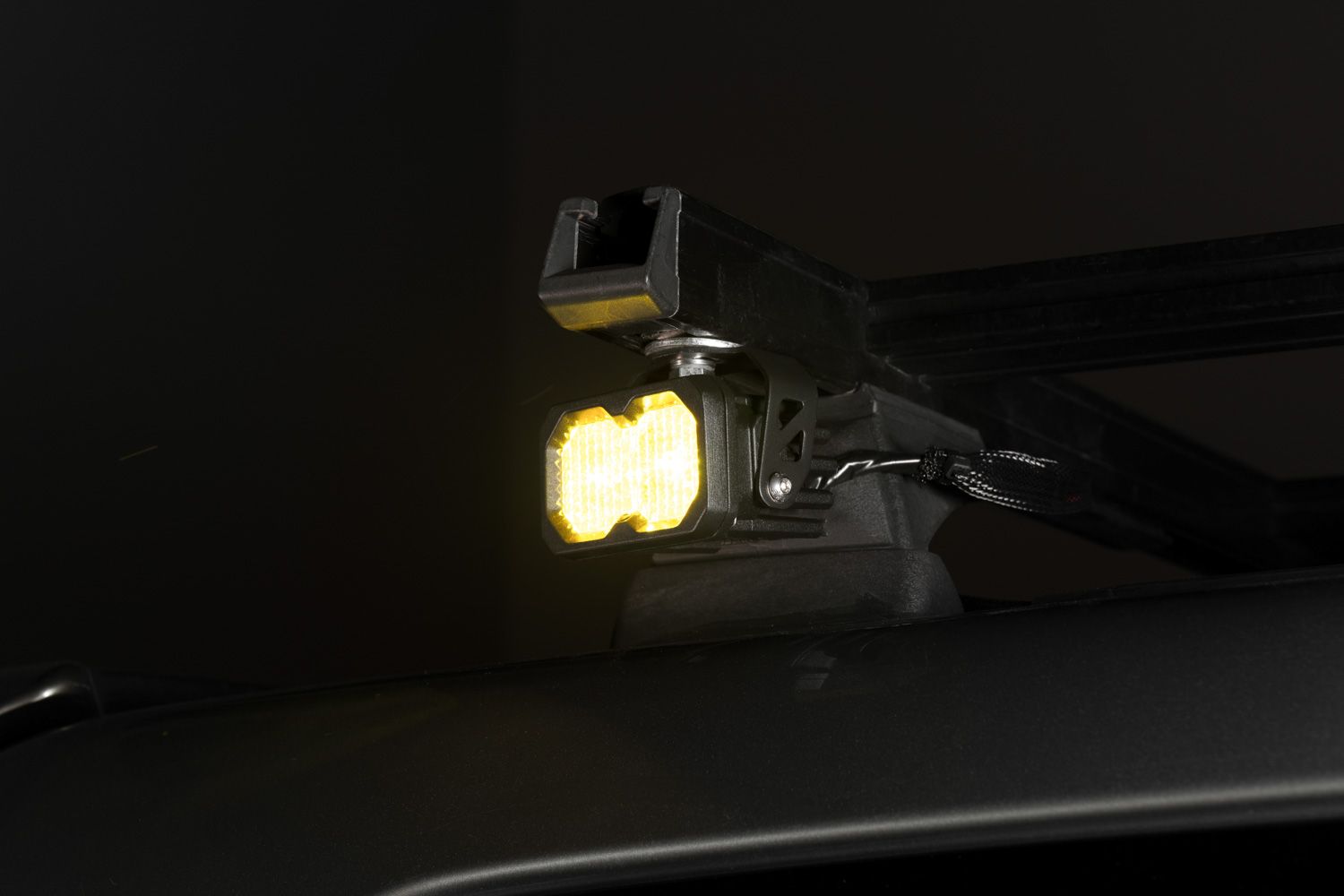

Introducing the next generation of compact LED lighting, the Stage Series C2 2.0 LED Pod! Building on the popularity of the original C2 LED Pod, the newly redesigned C2 2.0 packs even more power, light output, and versatility into the same 2-inch footprint. With its compact design, the C2 2.0 is a go-to for tight mounting spots–roof racks, roll bars, bumpers, A-pillars, you name it. Despite its small size, the new Max option is the most powerful two-inch pod on the market at 3900 raw lumens!

Re-Engineered From the Inside Out. The C2 2.0 may look familiar, but under the hood, everything has changed. A new copper-core circuit board is bonded directly to the LED chips, dramatically improving thermal efficiency and overall performance. The powdercoated aluminum housing has also been redesigned to dissipate more heat than ever before, resulting in higher power and light output.

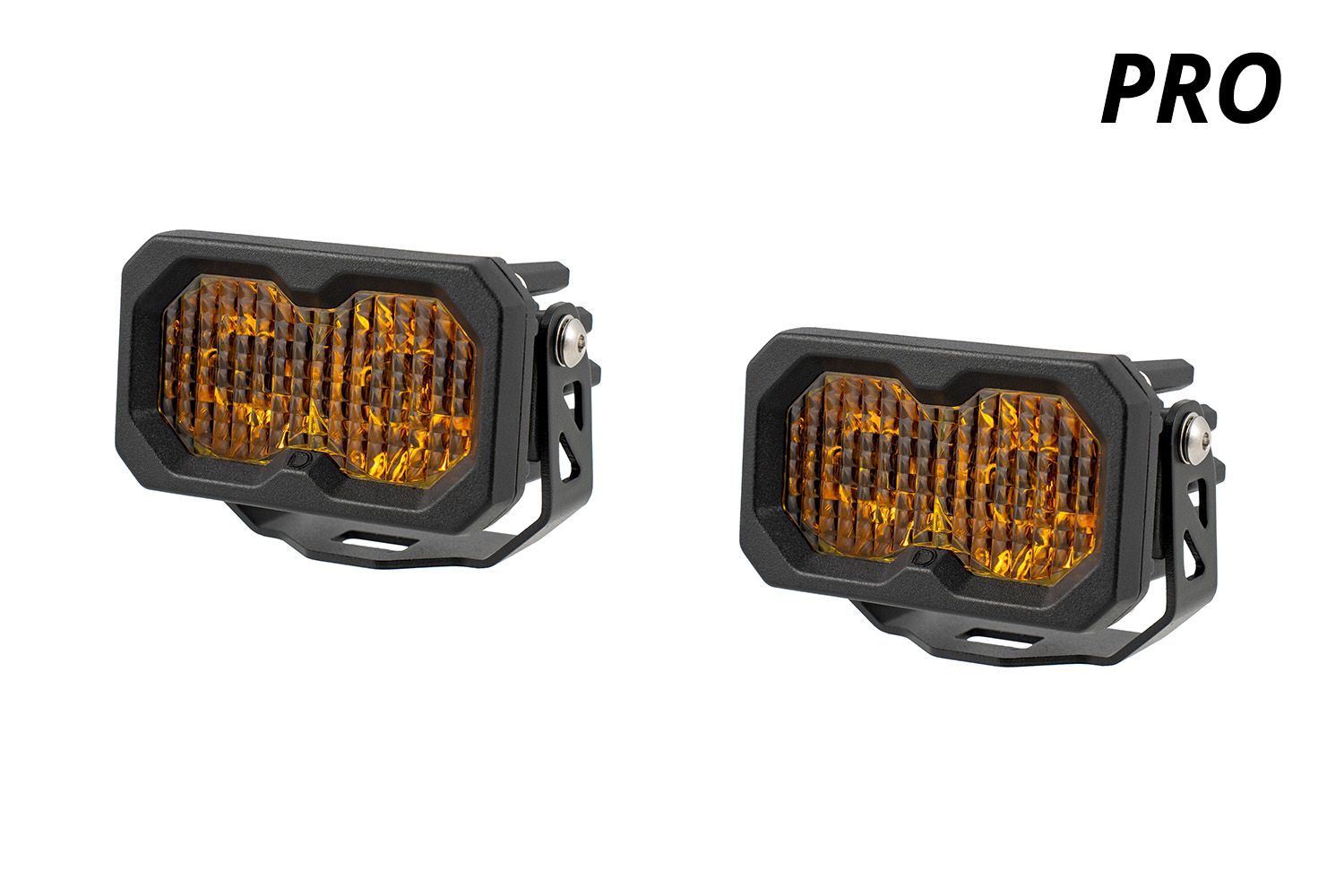

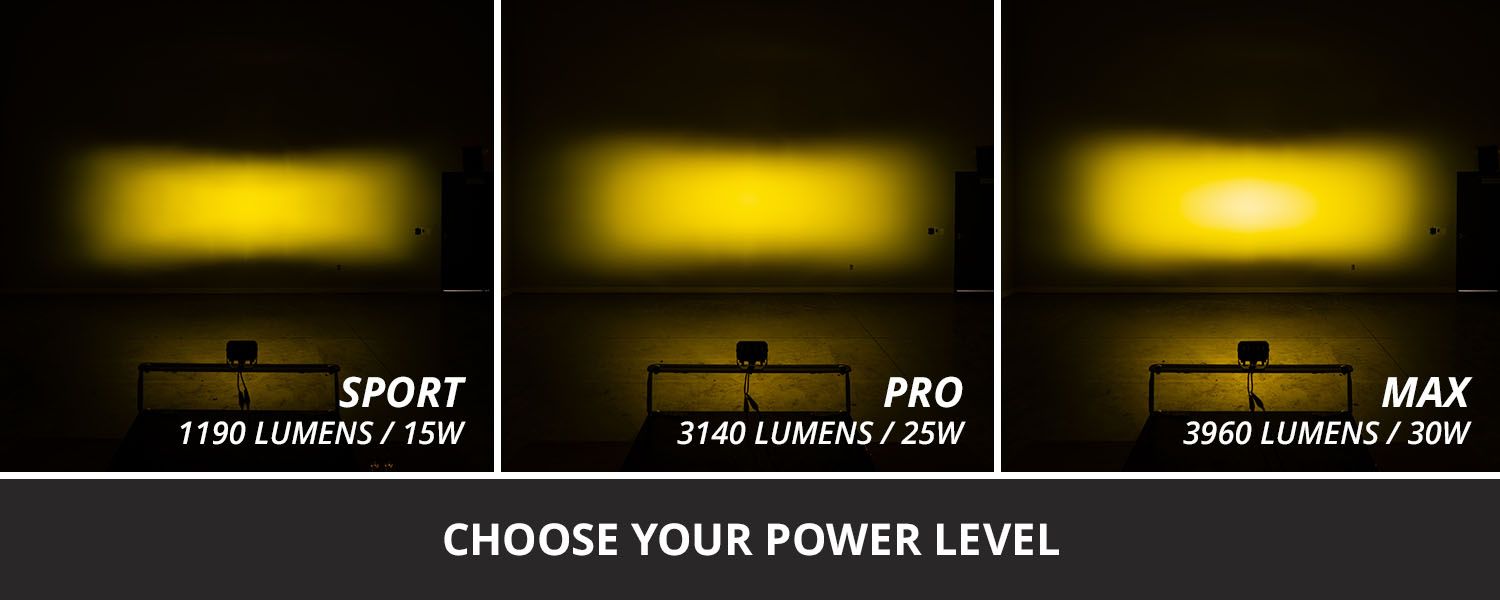

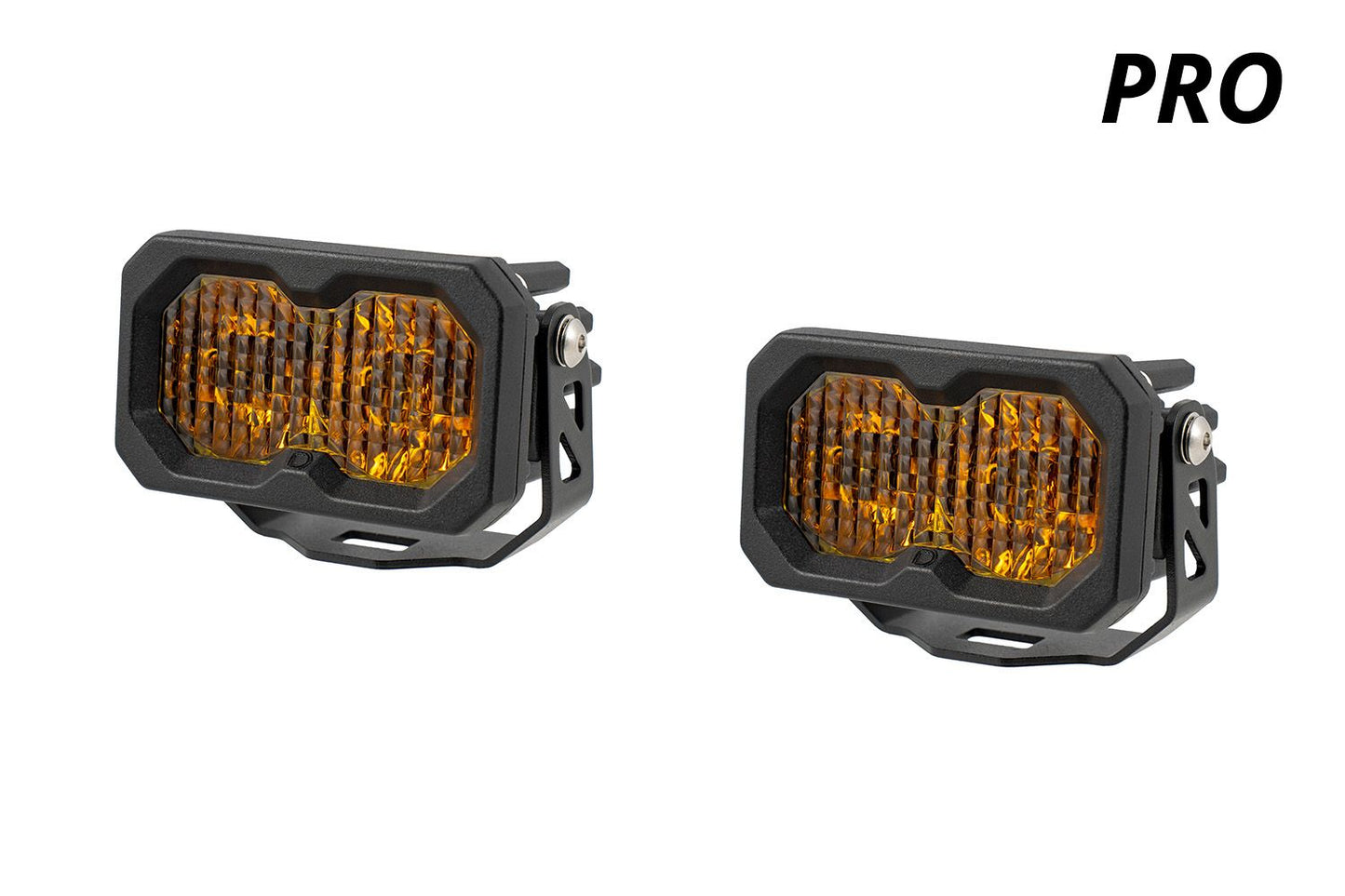

Choose Your Power Level. The C2 2.0 LED pod is now available at three different power levels. All options use high-intensity, automotive-grade LED emitters, and TIR optics for unmatched focus and overall output. The Sport model offers the best bang for your buck with high-intensity LEDs, while the Pro model takes things further with a noticeable boost in total power.

The new Max power level uses the same Osram HX Boost LEDs found in our highest-output SS3 LED pods, delivering 3900 raw lumens. That’s serious brightness from a pod that still fits in the palm of your hand.

Focused Performance. Our patented TIR (Total Internal Reflection) optics in the C2 2.0 have been re-engineered for up to 120% more intensity and more usable light output compared to the C2 1.0. The TIR optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

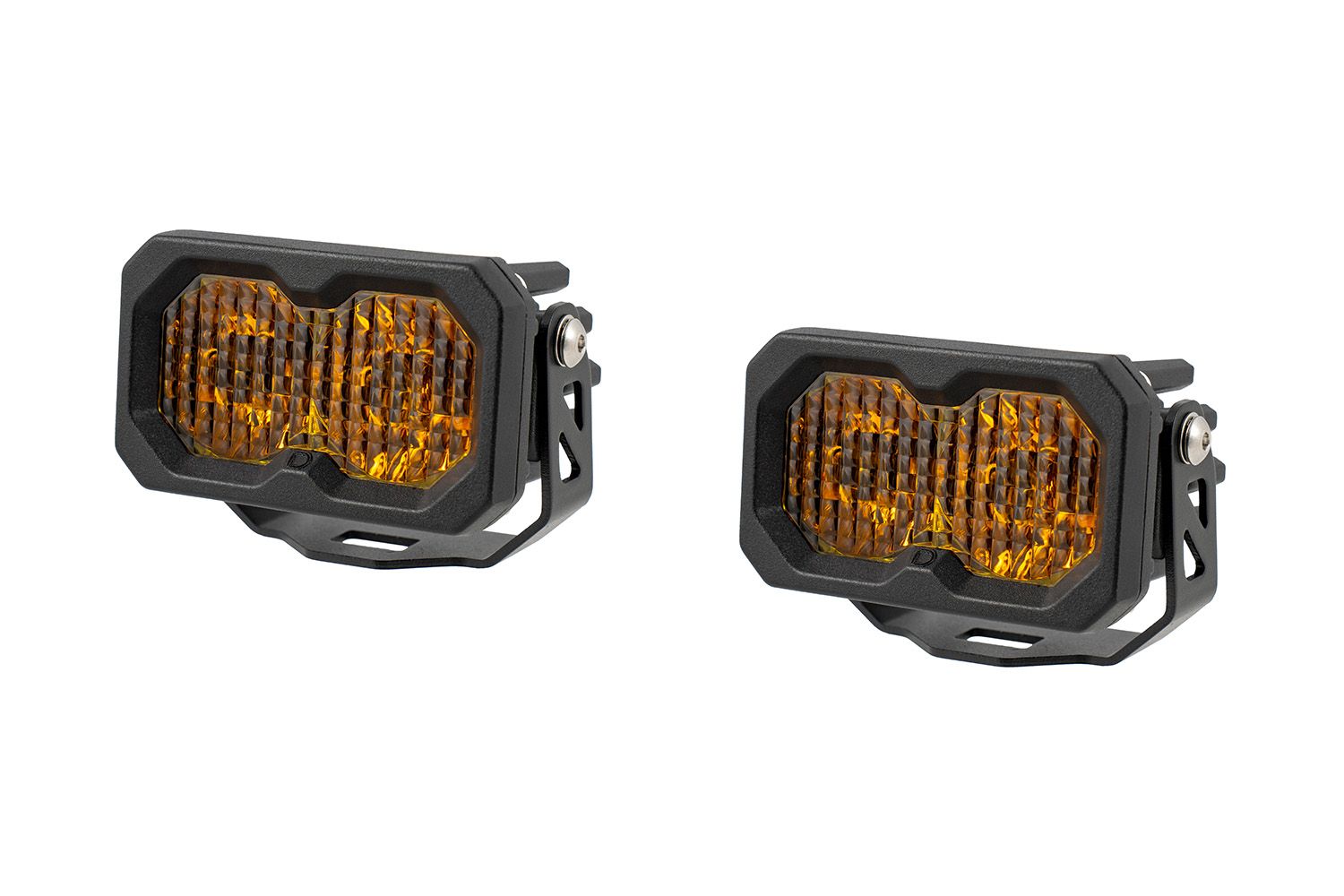

The Combo/Driving pattern has been completely redesigned to deliver a better blend of width and distance compared to the legacy model. The C2 2.0 Combo/Driving optic uses advanced pillow optics to shine light downrange in a rectangular pattern of 55x20 degrees. The Combo/Driving pattern is great for all-around use.

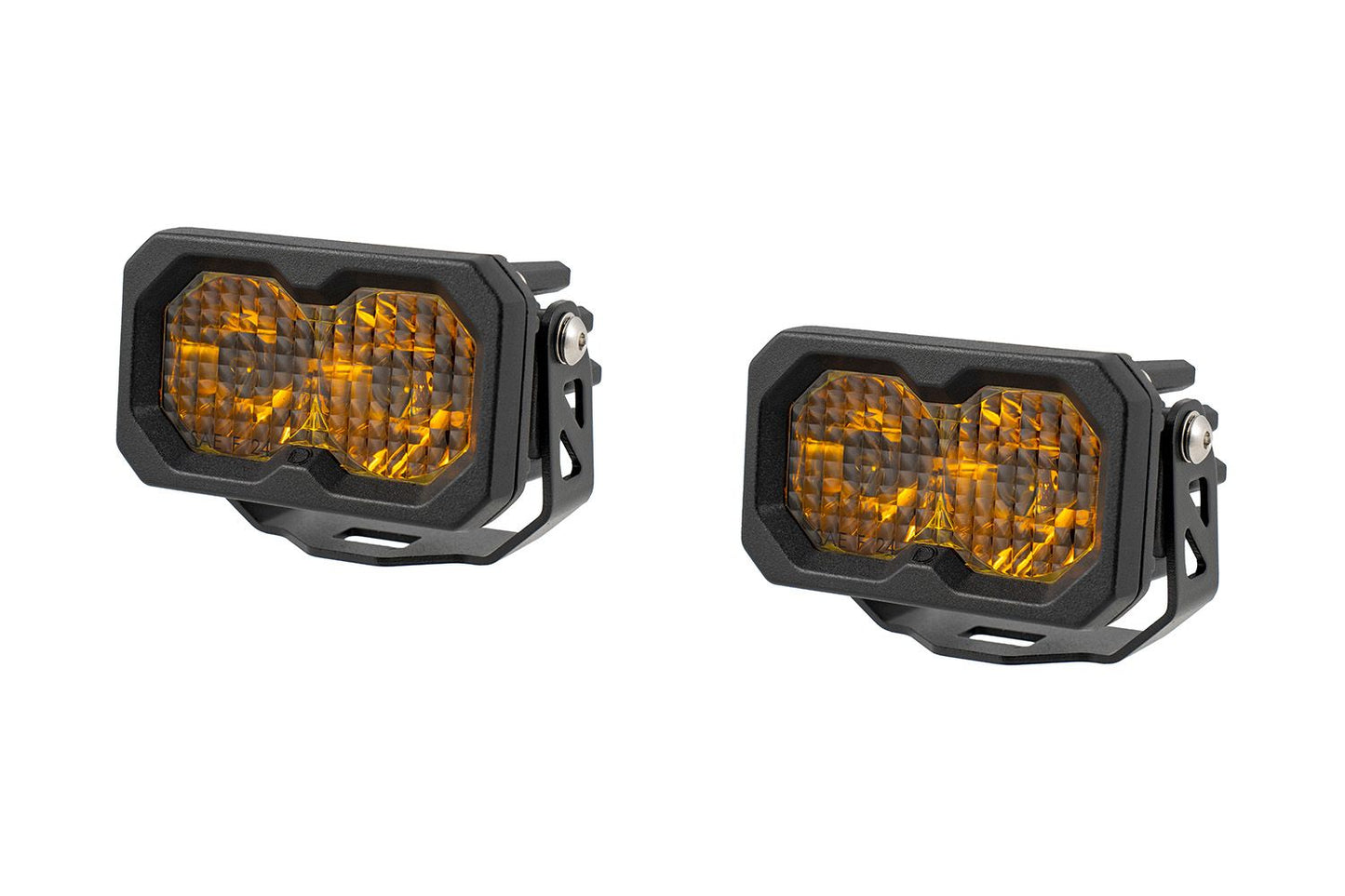

SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra width. The new C2 2.0 Driving pattern measures 20x12 degrees, providing the perfect width to fully illuminate the road ahead at high speeds.

SAE Fog/Wide uses our distinctive FineLine optic, which provides an exceptionally wide pattern. The SAE Fog/Wide optic shines with a 90x10 degree pattern to fully illuminate the area directly in front of your vehicle.

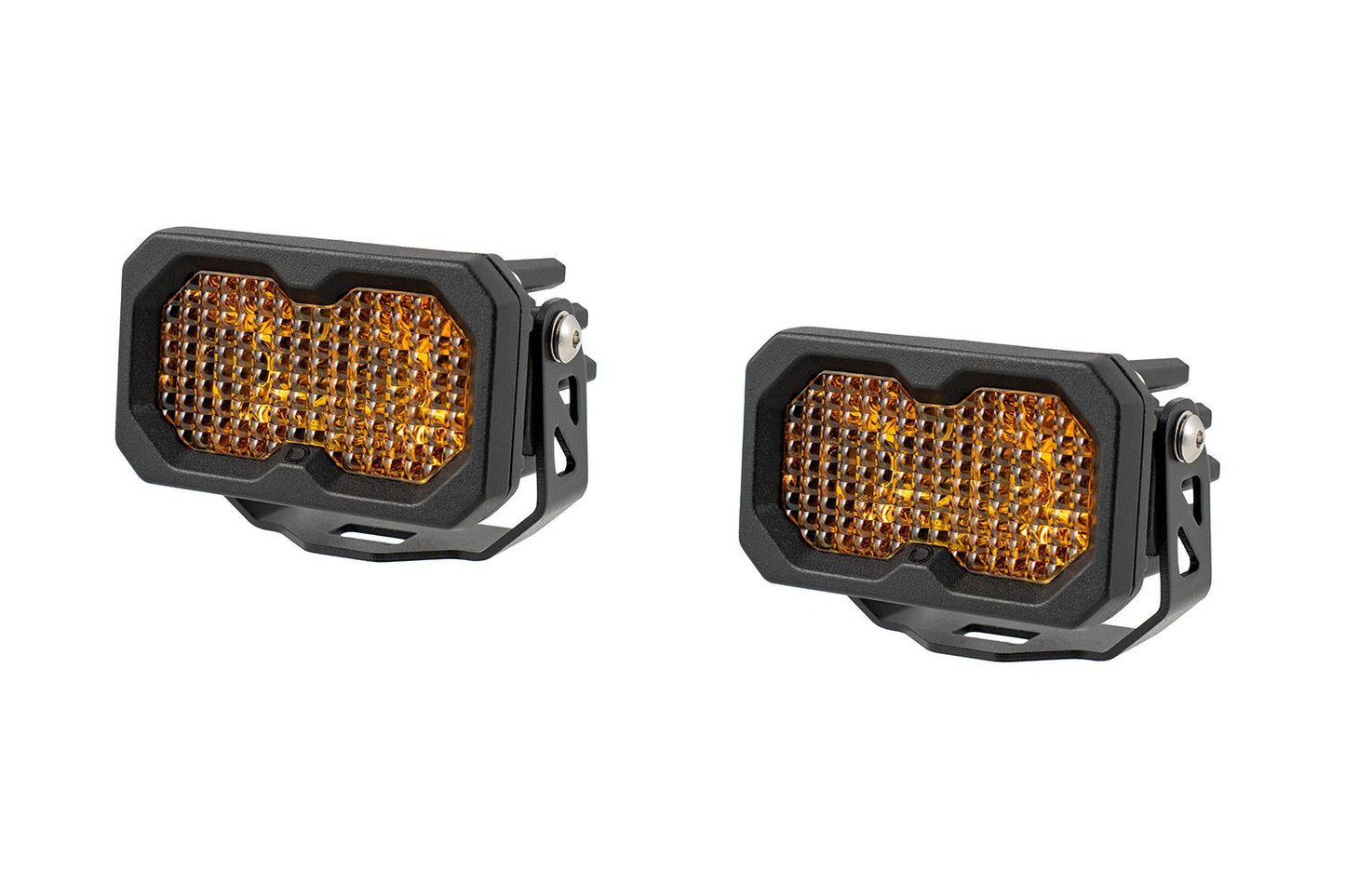

Flood pattern provides a uniform, even illumination with a broad 70x45 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.

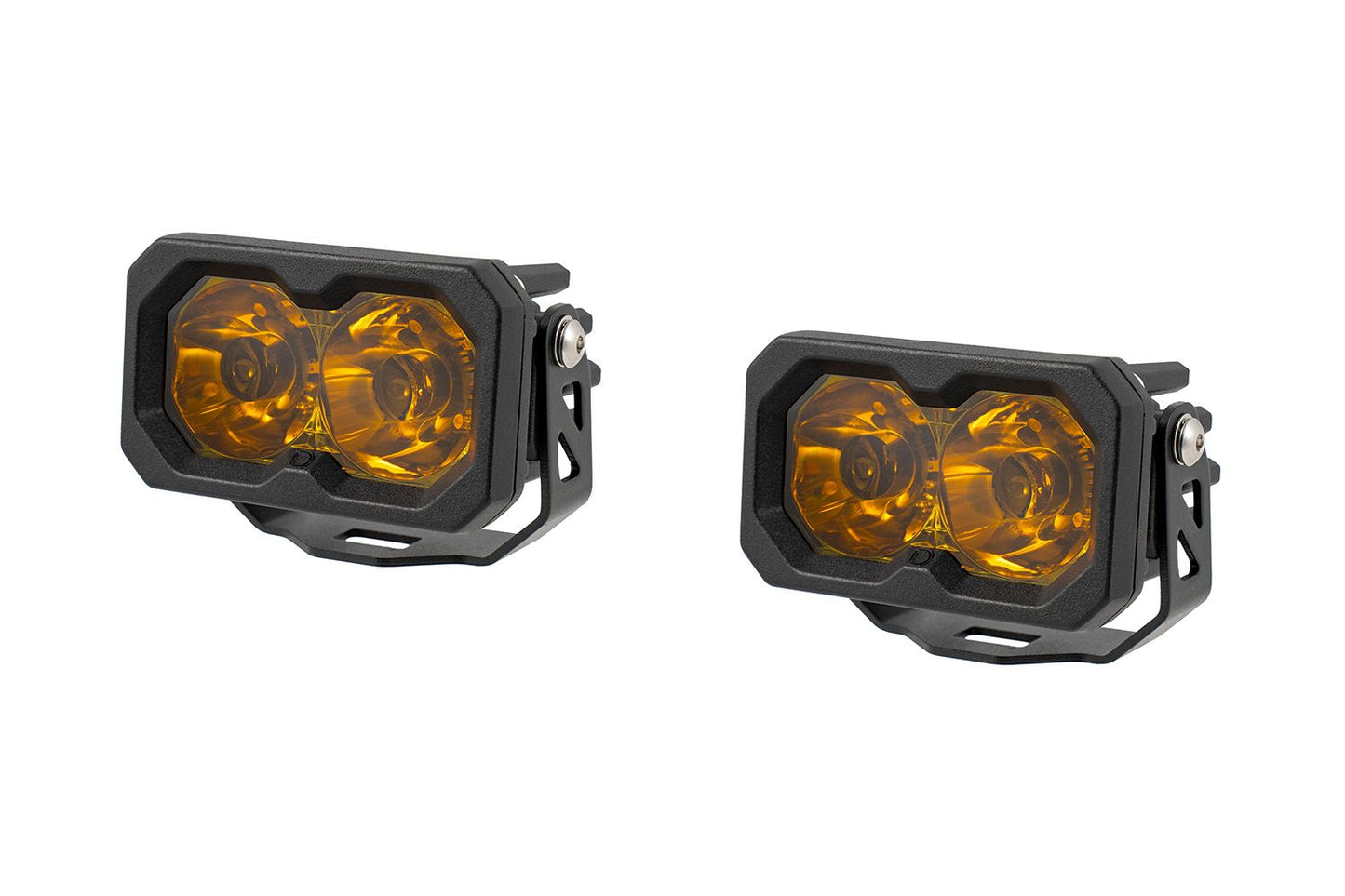

Spot shines light directly from the unmodified TIR optic in a tight, long-distance beam, resulting in a highly focused 8-degree beam of light. The Spot pattern is perfect for directing light far into the distance.

Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog/Wide pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. These C2 2.0 LED Pods include a distinctive backlight feature, available in your choice of red or amber. The backlight fully illuminates the TIR optic, providing a unique and modern look. The red backlight is ideal for those looking to match OEM taillights or boost rear visibility, while the amber backlight is a great option for forward-facing applications to match OEM markers or add extra visibility.

Customizable Mounting. The C2 2.0 LED pod features three mounting points to adjust the pod’s height. The revised mounting bracket also allows for even more adjustment to the angle of the pod for a more dialed-in setup.

Swappable Optics and Colors. Just like before, the lenses on the C2 are swappable. But here’s what makes the C2 2.0 even better–they now use the same high-output Cool White LED chips for both white and yellow LED pods. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white! Click here to view our full lineup of replacement lenses.

Snap-On Covers. Protect your investment or take the customization even further with our expanded lineup of Snap-On Lens Covers! An all-new amber cover joins our existing clear, yellow, smoked, and black options. No tools required, just snap on and go.

CrossLink. The C2 2.0 LED Pod is now available with our patent-pending CrossLink technology! Our CrossLink mounting system allows you to seamlessly link together multiple pods to create your own custom lightbar configuration. Click here to view our C2 2.0 CrossLink mounting solution.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

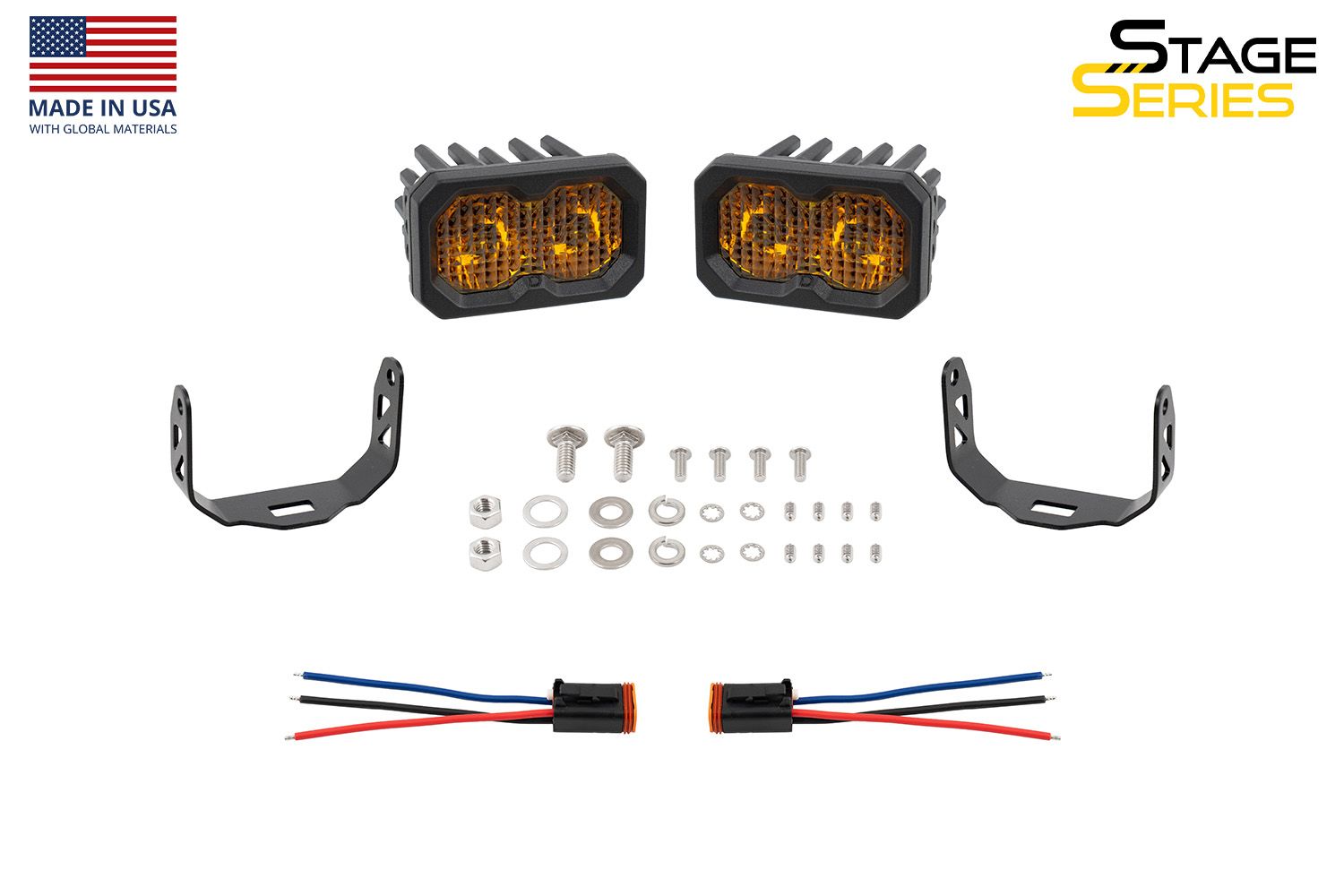

What's Included
